Code C796
Model C796
Capacity Ø6"
Weight (kg) 1.4
Weight (m3) 0.000
Weight (Freight) 1.4
Dimensions (cm) 11 x 8 x 4
HAFCO
1 Year
Taiwan

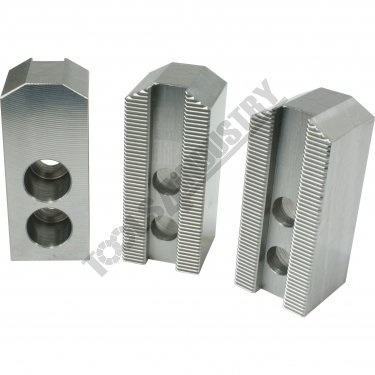

C796 Soft Jaws to suit CNC lathes - Standard Ø6"

Description

Soft Jaws to suit CNC lathes

Features

  • Maintains a high level of accuracy
  • Serration pitch 1.5 x 60º

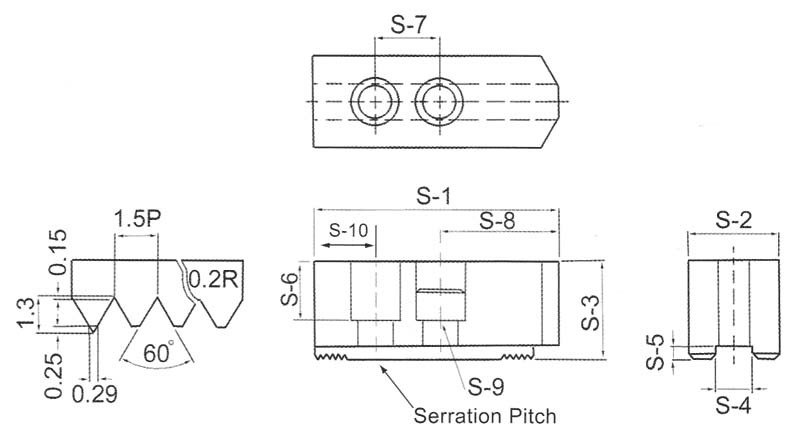

Specifications

ORDER CODE6"
SizeinchStandard
Type73
S-1mm31
S-2mm30
S-3mm12
S-4mm5
S-5mm18
S-6mm20
S-7mm38
S-8mmM10
S-9mm15
S-10mm1.5
Nett Weightkg
