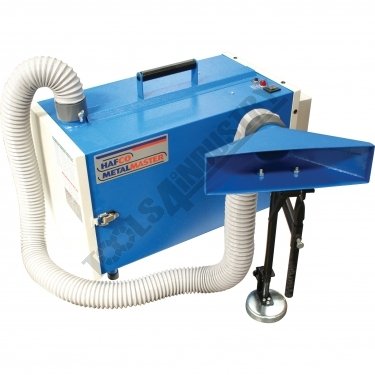

WE-100 Welding Fume Extractor


Manufactured in Taiwan

Ideal for extracting harmful welding fumes


  • Portable and light weight design
  • 390 m3/hour
  • 2 x 800W 240V motor, 2 speeds
  • 5 layers of filters
  • Captures up to 99.97% of 0.3 micron noxious fumes
  • Includes 3 metre x 2-1/2" hose and magnetic base hood with arm support


  • Stage 1. Air enters from the extraction hood & passes through five layer of high efficiency filters

  • Stage 2. The air passes through the first stainless steel layer net, which captures 95% of the sparks and steel chips

  • Stage 3. Air then enters the 35% & 85% pre-filter for screening small particles and absorbs the oil

  • Stage 4. The pleated filter captures up to 85% of the 1 micron particles & fine dust

  • Stage 5. Finally the pleated HEPA filter cleans noxious fumes and captures up to 99.97% of the 0.3 micron particles.


Extraction Arm/Hose LengthMetre63.5
Extraction Arm Diametermm~
Air Flowm3/h~
Hepa Filter Aream2~
Main Unit Size (w x l x h)mm240 / 10
Voltage / AmperageV / A800 x 2
Motor PowerW28.4
Nett Weightkg
